| Electrical Specifications | |||
|---|---|---|---|
| STC rated output (Pmpp) | 445 Wp | 450 Wp | 455 Wp |
| Rated voltage (Vmpp) at STC | 41.05 V | 41.32 V | 41.51 V |
| Rated current (lmpp) at STC | 10.84 A | 10.89 A | 10.96 A |
| Open circuit voltage (Voc) at STC | 48.80 V | 49.05 V | 49.35 V |
| Short circuit current (Isc) at STC | 11.30 A | 11.37 A | 11.44 A |
| Module efficiency | 20.5% | 20.7% | 20.9% |
| Rated output (Pmpp) at NMOT | 330.8 Wp | 334.5 Wp | 338.2 Wp |
| Rated voltage (Vmpp) at NMOT | 38.12 V | 38.37 V | 38.55 V |
| Rated current (Impp) at NMOT | 8.68 A | 8.72 A | 8.78 A |
| Open circuit voltage (Voc) at NMOT | 45.70 V | 45.94 V | 46.22 V |
| Short circuit current (Isc) at NMOT | 9.10 A | 9.16 A | 9.22 A |
| Temperature coefficient (Pmpp) | – 0.35%/°C | ||
| Temperature coefficient (Isc) | + 0.050%/°C | ||
| Temperature coefficient (Voc) | – 0.27%/°C | ||
| Nominal module operating temperature (NMOT) | 41±2°C | ||
| Maximum system voltage (IEC/UL) | 1500VDC | ||
| Number of diodes | 3 | ||
| Junction box IP rating | IP 68 | ||
| Maximum series fuse rating | 20 A | ||
STC: Irradiance 1000W/m2, Cell Temperature 25°C, AM=1.5NMOT: Irradiance 800W/m2, Ambient Temperature 20°C, AM=1.5, Wind Speed 1m/sName plate tolerances: Pmax +/-3%, Voc +/-3%, Isc +/-5%
| Mechanical Specifications | |||
|---|---|---|---|

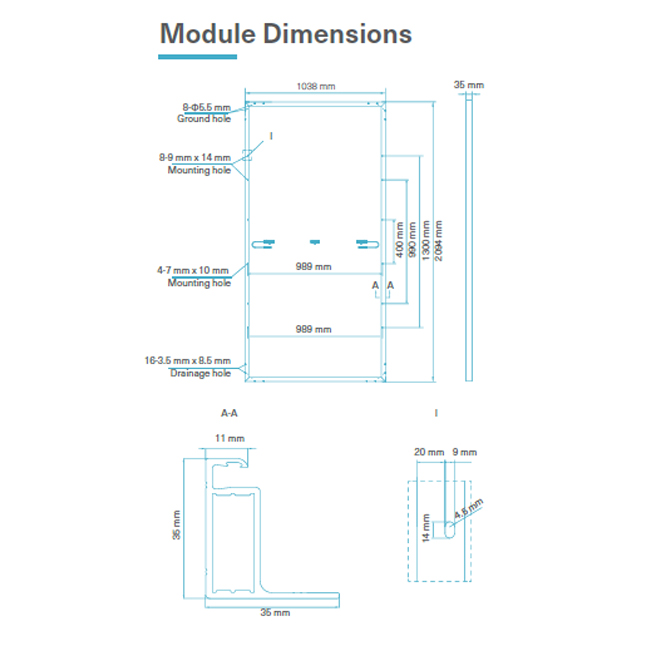

| Outer dimensions (L x W x H) | 2094 x 1038 x 35 mm | ||
| Frame technology | Aluminum, silver or black anodized | ||
| Front glass thickness | 3.2 mm | ||
| Cable length (IEC/UL) | Portrait: 300 mm Landscape (standard): 1300 mm |
||
| Cable diameter (IEC/UL) | 4 mm² / 12 AWG | ||
| ① Maximum mechanical test load | 5400 Pa (front) / 2400 Pa (back) | ||
| Fire performance (IEC/UL) | Class C (IEC) or Type 4 (UL) | ||
| Connector type (IEC/UL) | Stäubli MC4 EVO2 connectors (PV-KST4 EVO 2 & PV-KBT4 EVO 2) |
||
① Refer to Energizer crystalline installation manual or contact technical department.
Maximum Mechanical Test Load=1.5×Maximum Mechanical Design Load.
| Packing Specifications | |||
|---|---|---|---|
| ① Module Weight | 23.5 kg | ||
| ② Packing unit | 31 pcs / box | ||
| Weight of packing unit (for 40‘HQ container) |
769 kg | ||
| Number of modules per 40‘HQ container |
682 pcs | ||
① Tolerance +/- 1.0kg② Subject to sales contract
