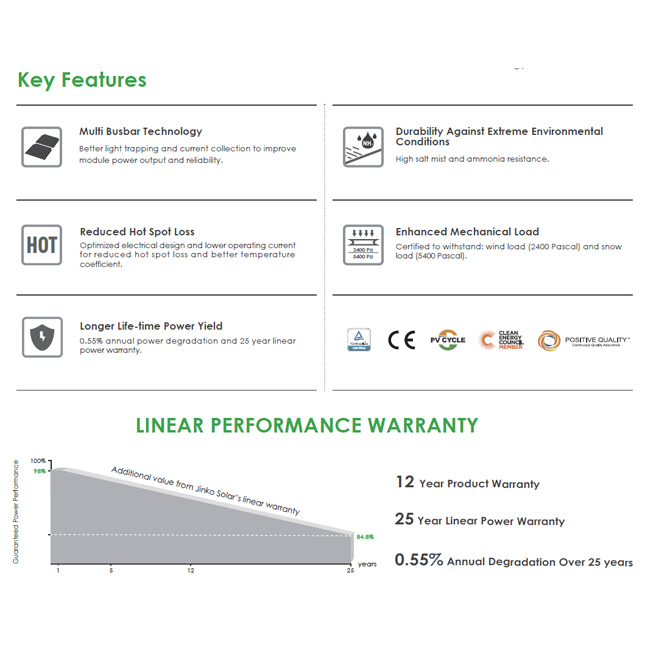

| Packaging Configuration | |||
|---|---|---|---|
| ( Two pallets = One stack ) | |||
| 36pcs/pallets,72pcs/stack,864pcs/40’HQ Container |

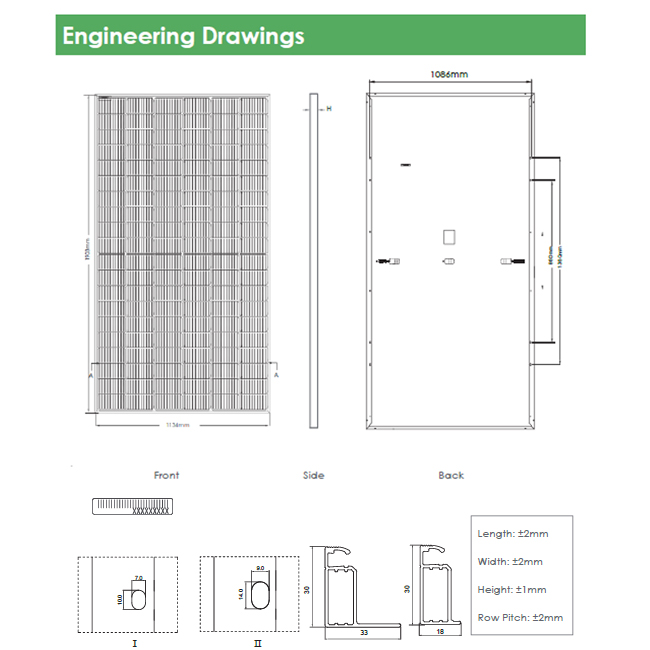

| Mechanical Characteristics | |||
|---|---|---|---|
| Cell Type | P type Mono-crystalline | ||
| No. of cells | 120 (6×20) | ||
| Dimensions | 1903×1134×30mm | ||
| Weight | 24.2 kg (53.35 lbs) | ||
| Front Glass | 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass | ||
| Frame | Anodized Aluminium Alloy | ||
| Junction Box | IP68 Rated | ||
| Output Cables | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length | ||

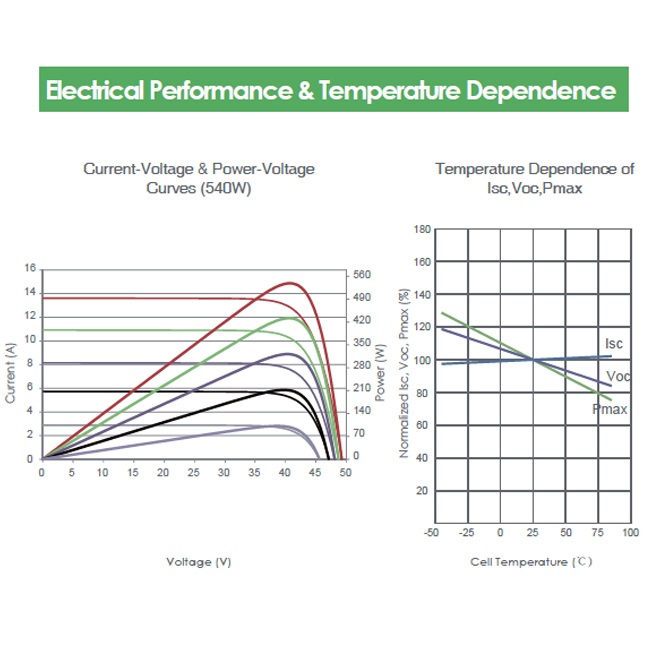

| SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Module Type | JKM530M-72HL4 JKM440JKM530M-72HL4-V | JKM535M-72HL4 JKM535M-72HL4-V | JKM540M-72HL4 JKM540M-72HL4-V | JKM545M-72HL4 JKM545M-72HL4-V | JKM550M-72HL4 JKM550M-72HL4-V |
| STC NOCT | STC NOCT | STC NOCT | STC NOCT | STC NOCT | |
| Maximum Power (Pmax) | 530Wp 394Wp | 535Wp 398Wp | 540Wp 402Wp | 545Wp 405Wp | 550Wp 409Wp |
| Maximum Power Voltage (Vmp) | 40.56V 37.84V | 40.63V 37.91V | 40.70V 38.08V | 40.80V 38.25V | 40.90V 38.42V |
| Maximum Power Current (Imp) | 13.07A 10.42A | 13.17A 10.50A | 13.27A 10.55A | 13.36A 10.60A | 13.45A 10.65A |
| Open-circuit Voltage (Voc) | 49.26V 46.50V | 49.34V 46.57V | 49.42V 46.65V | 49.52V 46.74V | 49.62V 46.84V |
| Short-circuit Current (Isc) | 13.71A 11.07A | 13.79A 11.14A | 13.85A 11.19A | 13.94A 11.26A | 14.03A 11.33A |
| Module Efficiency STC (%) | 20.55% | 20.75% | 20.94% | 21.13% | 21.33% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1000/1500VDC (IEC) | ||||
| Maximum series fuse rating | 25A | ||||
| Power tolerance | 0~+3% | ||||
| Temperature coefficients of Pmax | -0.35%/℃ | ||||
| Temperature coefficients of Voc | -0.28%/℃ | ||||
| Temperature coefficients of Isc | 0.048%/℃ | ||||
| Nominal operatingcell temperature (NOCT) | 45±2℃ | ||||
